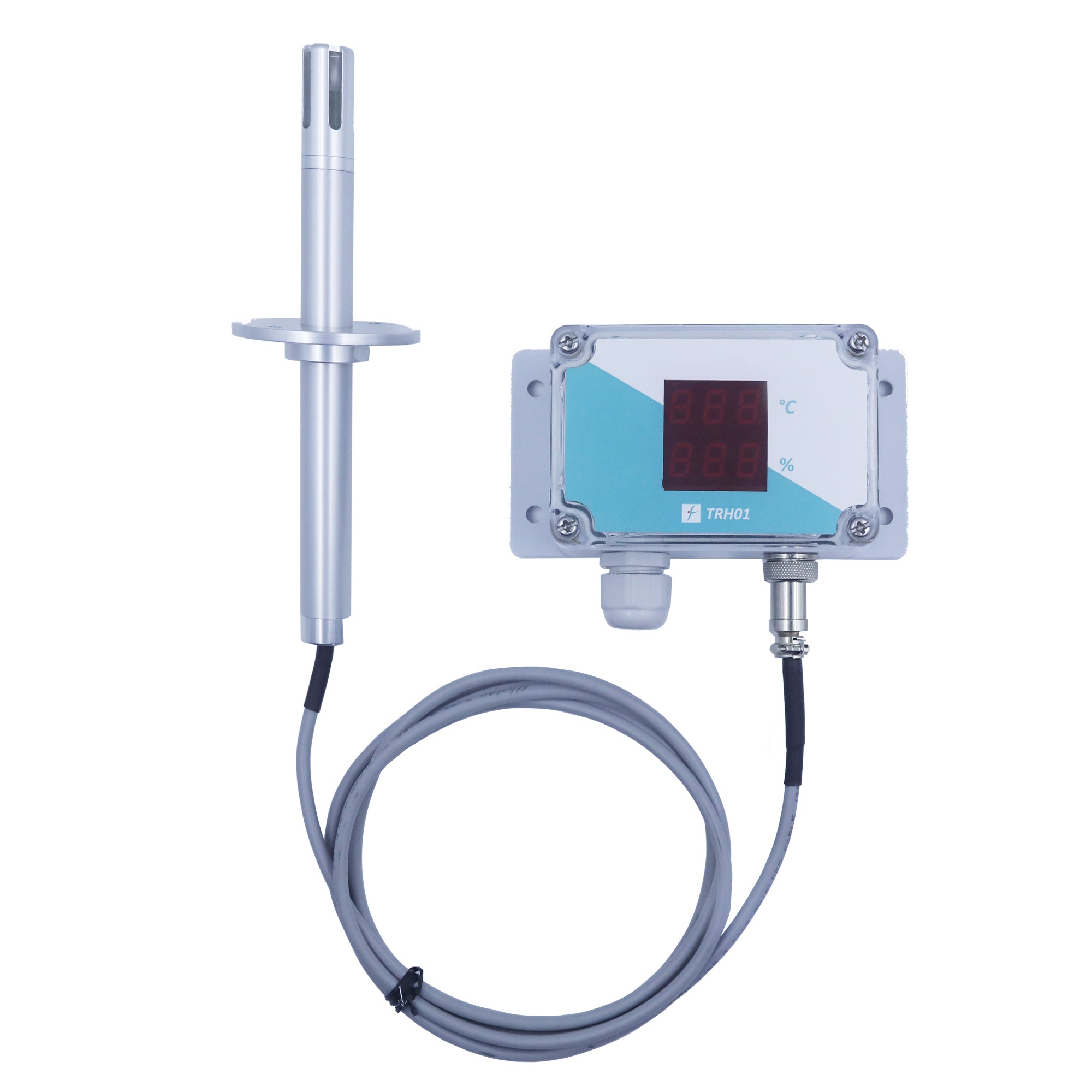

Temperature and Humidity Sensor | Duct mount | Separate probe

Add Your Review
Available: In Stock
Rs. 5,500.00

Futuristic Temperature and Humidity Transmitter  series TRH01-S1  is designed to reduce effects of high humidity, condensation or fog and is suitable for measuring Temp. & RH in HVAC applications.

Specifications :

Relative Humidity :

RH Sensing Technology        : Polymer based Capacitive sensor

RH Measurement Range      : 0% to 100%

RH Accuracy                          : ±2% @ 25°C for 10 to 90% RH

RH Resolution                       : 0.01%

RH Repeatability                   : ±0.1% typical

RH Response time                :  4 Secs (t 63%)

RH Long term drift               : <0.2 % RH Per year

RH Output                             : 4-20mA  @500 ohms



Temperature :

Temp. Measurement Range   :  0 to +70°C

Temp. Accuracy                      : ± 0.2°C

Temp. Resolution                   :  0.01 °C

Temp.  Repeatability              :  0.04 °C typical

Temp.  Response time            :  2 Secs (t 63%)

Temp.  Long term drift           : <0.03°C Per year

Temp.   Output                       : 4-20mA  @500 ohms



Supply Voltage                     : 24VDC

Communication Port            : RS485, Modbus (Optional)

Operating Temperature        :  - 25° to +50°C

Enclosure                              : ABS/Polycarbonate, IP65

Probe                                    : Anodized Aluminum

Dust Screen                          : SS304

Futuristic Temperature and Humidity Transmitter  series TRH01-S1  is designed to reduce effects of high humidity, condensation or fog and is suitable for measuring Temp. & RH in HVAC applications.

Specifications :

Relative Humidity :

RH Sensing Technology        : Polymer based Capacitive sensor

RH Measurement Range      : 0% to 100%

RH Accuracy                          : ±2% @ 25°C for 10 to 90% RH

RH Resolution                       : 0.01%

RH Repeatability                   : ±0.1% typical

RH Response time                :  4 Secs (t 63%)

RH Long term drift               : <0.2 % RH Per year

RH Output                             : 4-20mA  @500 ohms



Temperature :

Temp. Measurement Range   :  0 to +70°C

Temp. Accuracy                      : ± 0.2°C

Temp. Resolution                   :  0.01 °C

Temp.  Repeatability              :  0.04 °C typical

Temp.  Response time            :  2 Secs (t 63%)

Temp.  Long term drift           : <0.03°C Per year

Temp.   Output                       : 4-20mA  @500 ohms



Supply Voltage                     : 24VDC

Communication Port            : RS485, Modbus (Optional)

Operating Temperature        :  - 25° to +50°C

Enclosure                              : ABS/Polycarbonate, IP65

Probe                                    : Anodized Aluminum

Dust Screen                          : SS304
