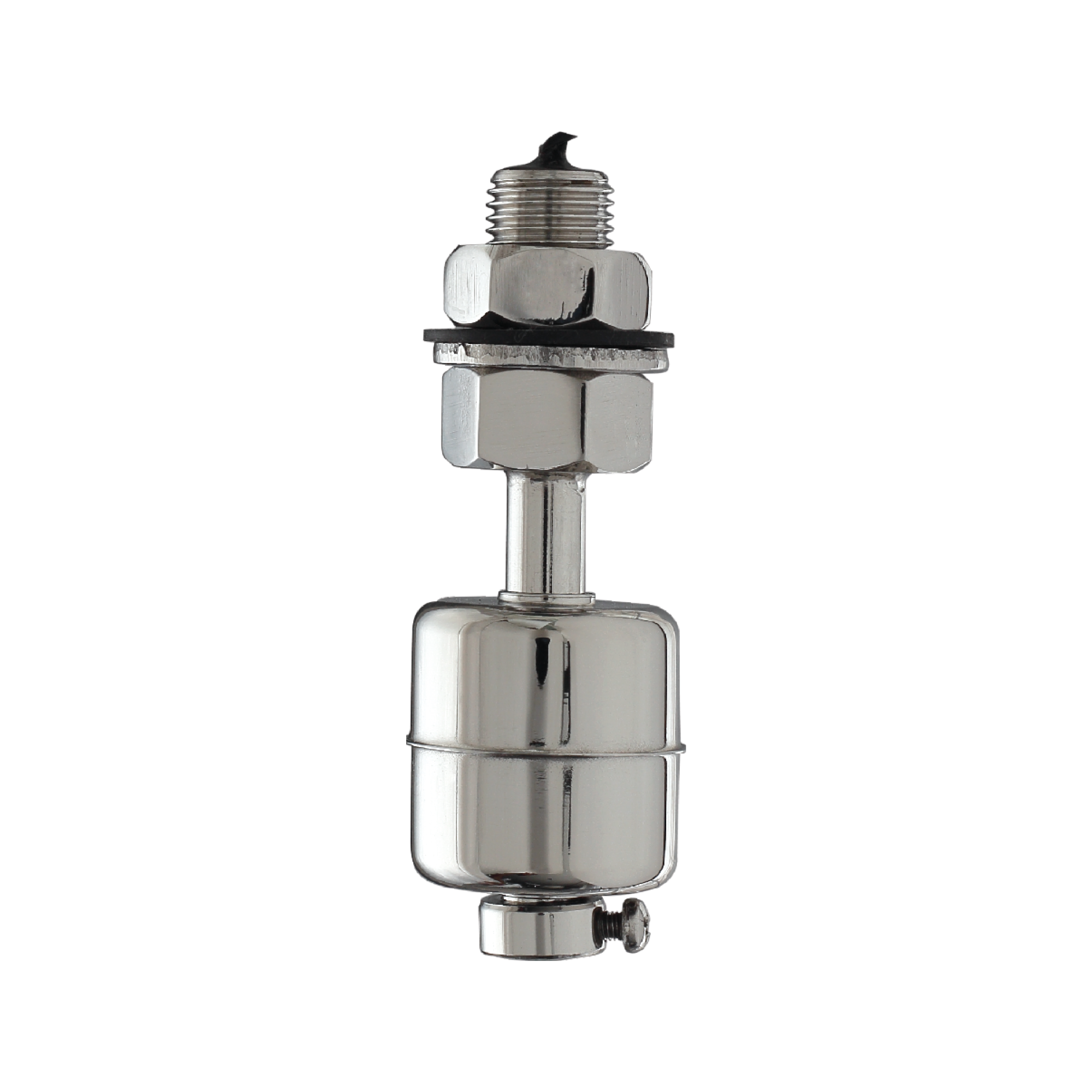

Futuristic LS03 top-mounted stainless steel level switch is a compact and reliable device designed specifically for liquid level sensing in various applications such as oil reservoir, coolant tank, sterilizing equipment, processing tank etc. The switch LS03 is for top mounting, providing a convenient and space-efficient solution for liquid level detection.
Specifications:
Mounting : Top
Material of Float/Stem : AISI 304 SS
Process connection : 1/8” BSP(M)
Din Connector : No
Max. Temperature : 100°C
Max. Pressure : 10 bar
Min. Specific Gravity : 0.75
Switching Differential : ± 3mm
Reed Switch : Hermetically sealed
Switch Rating : 0.5 Amp
Switching Voltage : 230 VAC
Carrying Current : 1 Amp
Insulation Resistance : 100Ω
