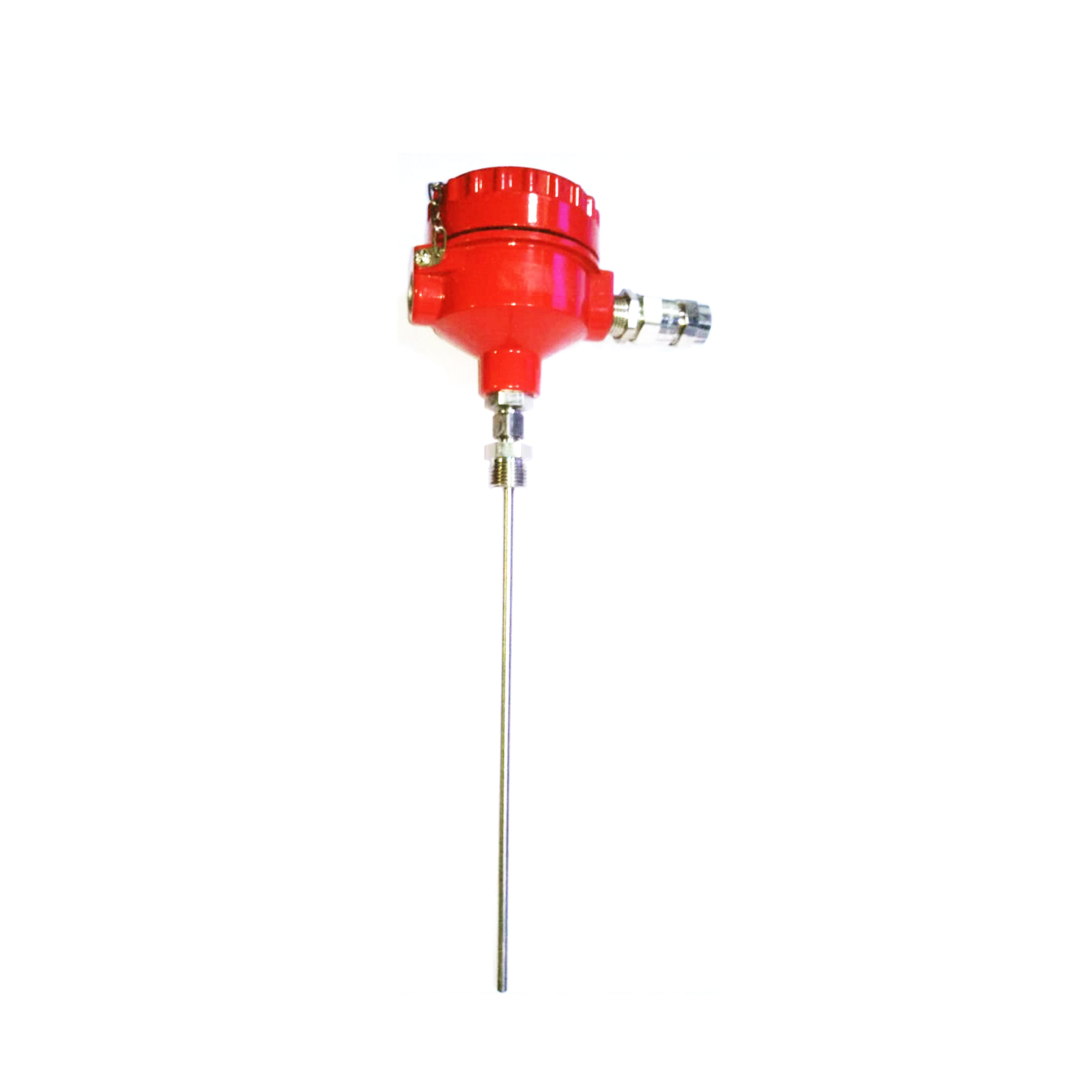

Futuristic Flameproof Temperature Sensor TE02
Introducing TE02, the Futuristic Flameproof Temperature Sensor series, perfect for diverse applications like Ovens, Hot Air Generators, Thermic Heaters, Cooling Water Systems, HVAC units and more. It offers the option of integrating a temperature transmitter inside the head, streamlining the setup process and delivering 4-20mA, 2-wire output. This advanced feature enhances efficiency and accuracy in temperature monitoring, making TE02 the ideal choice for precision-driven applications
Specifications:
- Sensing Element : DIN PT100/ PT1000/ NTC Sensor
- Temperature Range : -50 to 550°C
- Accuracy : Class A ± 0.15%
- Response Time : T50 = 9s T90 = 28s
- Sleeve MOC : SS316
- Sleeve OD : 6 mm
- Sleeve Length : in mm (as per order)
- Sleeve End : Closed
- Head : Suitable for Group IIA, B or IIC Cover with chain
- Protection : IP65
- Electrical Connection : Double compression cable gland
- Process Connection : ½” BSP M (adjustable or as per code)
- Transmitter : Optional transmitter 4-20mA , 2wire Fitted inside head
Futuristic Flameproof Temperature Sensor TE02
Introducing TE02, the Futuristic Flameproof Temperature Sensor series, perfect for diverse applications like Ovens, Hot Air Generators, Thermic Heaters, Cooling Water Systems, HVAC units and more. It offers the option of integrating a temperature transmitter inside the head, streamlining the setup process and delivering 4-20mA, 2-wire output. This advanced feature enhances efficiency and accuracy in temperature monitoring, making TE02 the ideal choice for precision-driven applications
Specifications:
- Sensing Element : DIN PT100/ PT1000/ NTC Sensor
- Temperature Range : -50 to 550°C
- Accuracy : Class A ± 0.15%
- Response Time : T50 = 9s T90 = 28s
- Sleeve MOC : SS316
- Sleeve OD : 6 mm
- Sleeve Length : in mm (as per order)
- Sleeve End : Closed
- Head : Suitable for Group IIA, B or IIC Cover with chain
- Protection : IP65
- Electrical Connection : Double compression cable gland
- Process Connection : ½” BSP M (adjustable or as per code)
- Transmitter : Optional transmitter 4-20mA , 2wire Fitted inside head
