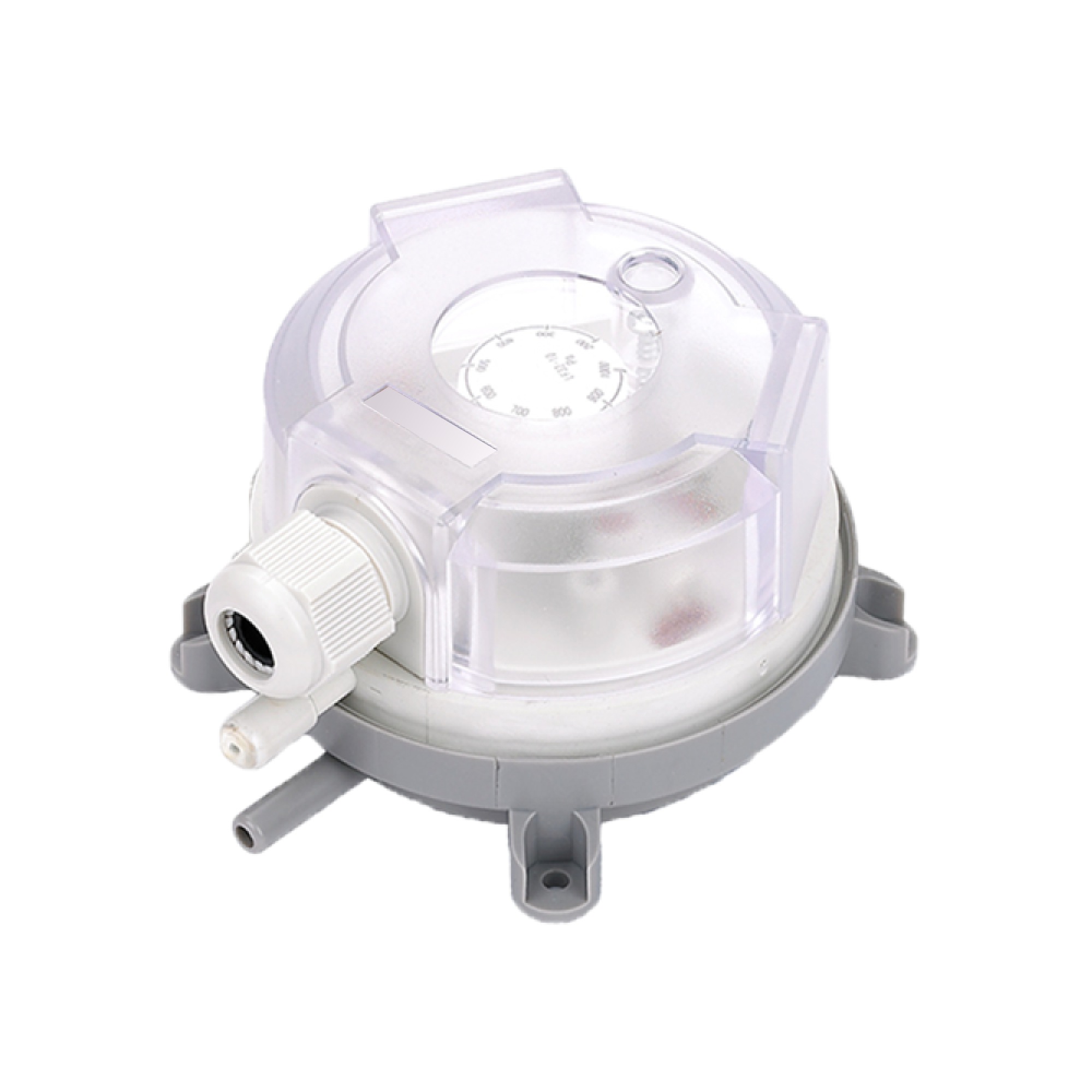

Futuristic Differential Pressure Switch DPS01 is an adjustable switch capable of detecting miniscule changes in pressure. The switch set point can be field-adjusted without the need of a manometer by using the adjustment knob and the built-in calibrated visual scale. This switch is equipped with a clear cover that protects the adjustment knob from involuntary movement and also provides class IP54 protection.
Specifications:
- Media : Air, non-combustible and non-aggressive gas
- Max operating pressure : 10kPa
- Mounting position : Vertical
- Degree of protection : IP54
- Operating temperature : -20°C to +85°C
- Contact arrangement : SPDT
- Electrical rating : 1.5A(0.4A)/250V
- Terminal : 6.3mmX0.8 blade
- Connection : φ6.4mm for tube connection
