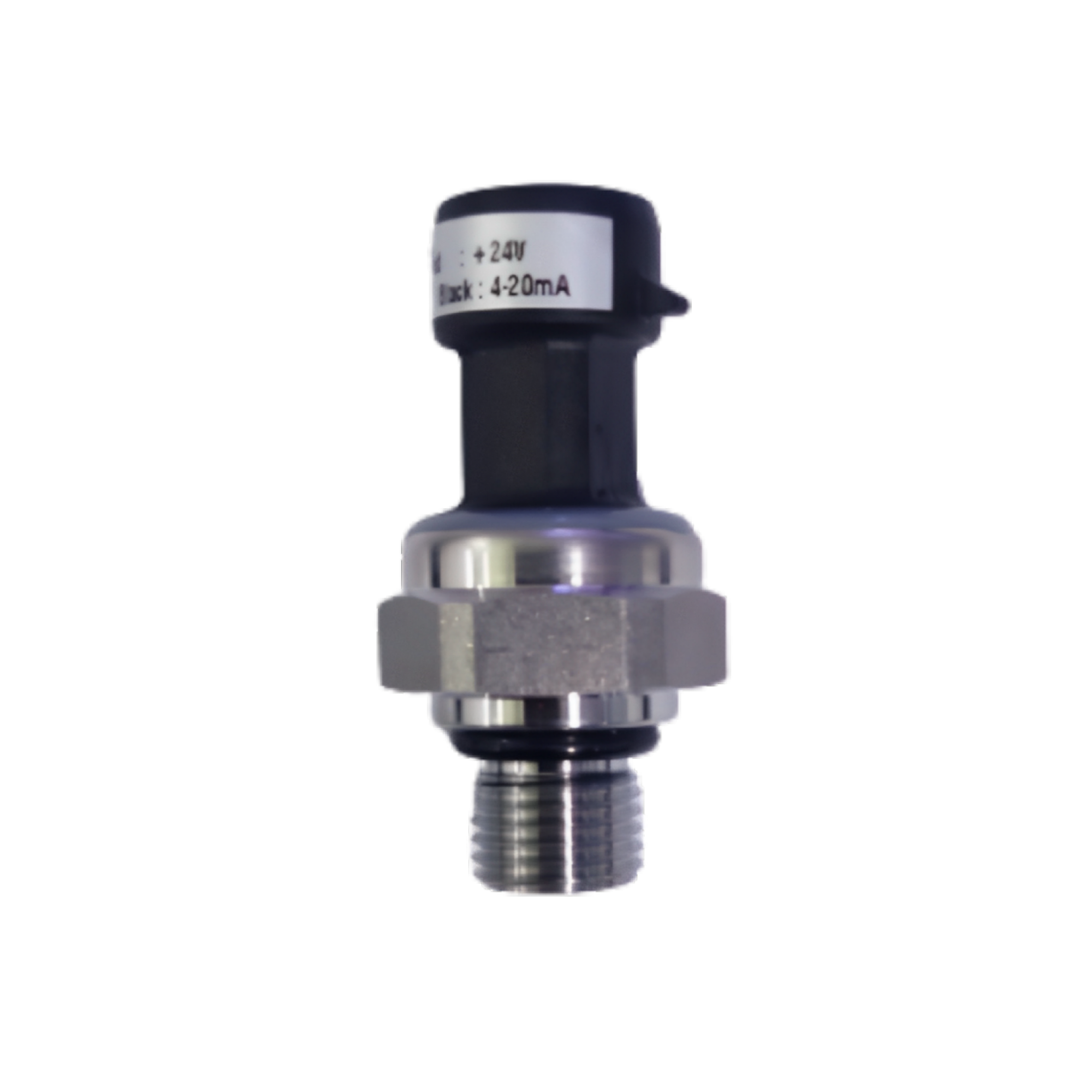

The Futuristic PT02 Series Pressure Transmitters are highly accurate sensors with 1% full-scale accuracy. They are made of corrosion-resistant stainless steel and can measure pressure in water, air, hydraulic systems, and oil.
These transmitters are ideal for OEM applications exposed to mechanical shock, vibration, and electromagnetic interference. They find use in hydraulics, pneumatics, compressor controls, pump protection, and water systems.
Specifications:
- Service : Compatible for water, air, hydraulic oil
- Pressure Measuring Range : 10, 16, 25 Bar G
- Output Signal : 4-20mA, 2 wire / 0.5-4.5VDC, 3 wire
: Response Time: 10ms - Wetted Materials : Type 304 SS
- Temperature Limit : -20 to 120°C
- Power Requirements : 8-30VDC(for 4-20 mA)
- Accuracy : ±1.0% FS
- Current Consumption : 38mA maximum (for 4-20mA output)
- Electrical Connections : Packard metri-pack
- Process Connection : 1/4” male BSPT
- Enclosure Rating : IP67
