Futuristic Technologies

DPT01

Add Your Review
Available: In Stock
Rs. 5,500.00

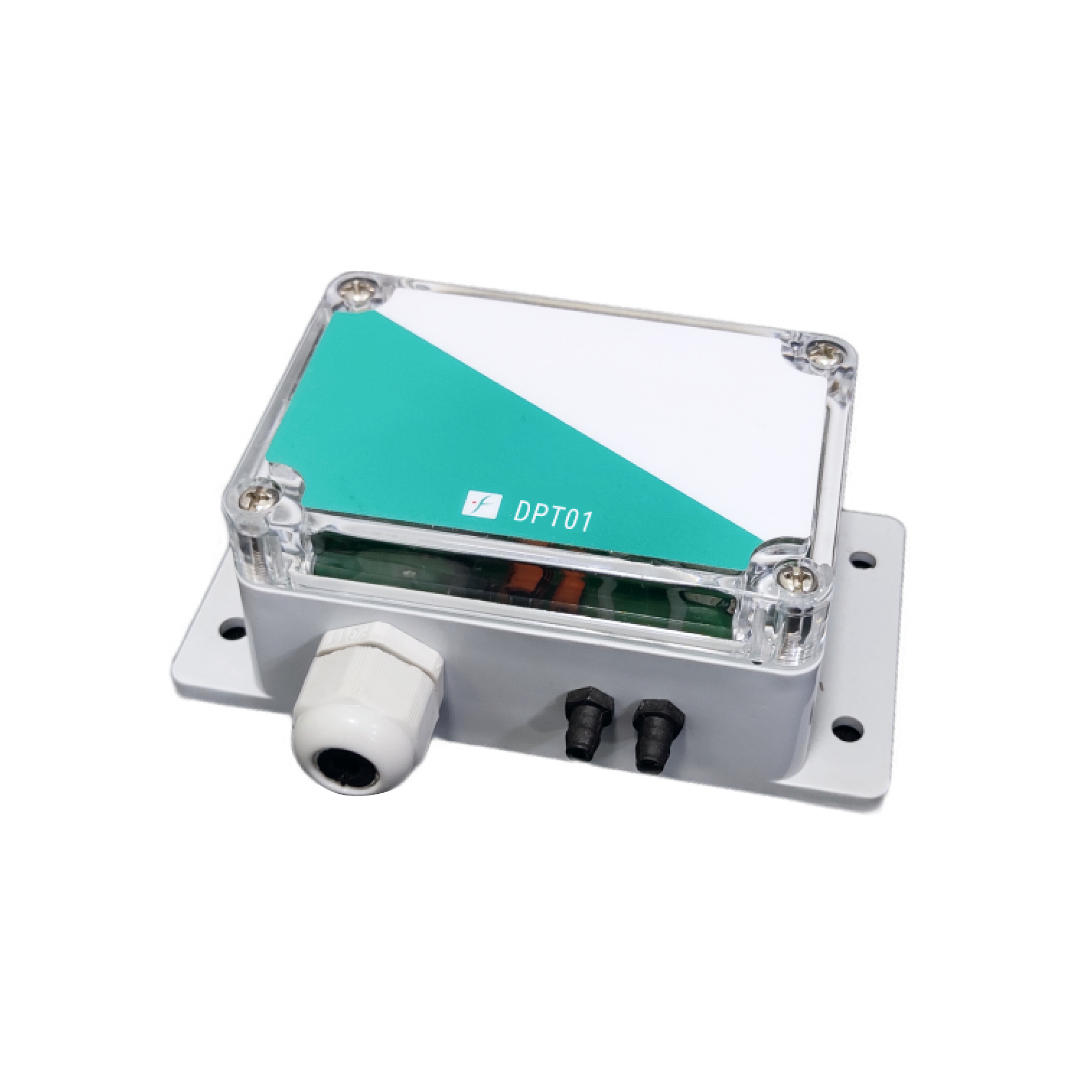

Futuristic Differential Pressure Transmitter Series DPT01 can be used to measure positive, negative or differential pressure in the ranges of ±25 Pa to ±20”WC. LED Display is also available. Typical HVAC applications include monitoring of Duct static Pressure & Filter differential pressure monitoring in AHUs.

Specifications:

  • DP Sensing Technology : Piezo resistive silicon sensor
  • Service                           : Air or non-corrosive gases
  • Measurement Range     : ±25 Pa to ±20”WC (Please refer ordering code)
  • Over Pressure                : 3.6 PSI
  • Burst Pressure                : 6 PSI
  • Accuracy                        : ±1% FS
  • Stability                          : ±1% FS per Year
  • Output Resolution         : 0.025%
  • Start up Time                 : 5 mSec
  • Response time               : 1 mSec
  • Output                           : 4-20mA / 0 to 10VDC
  • Display                           : 5 Digit LED Display (Optional)
  • Supply Voltage              : 24VDC / 24VAC ±10%
  • Electrical Entry               : Cable Gland PG11
  • Process Connection       : 5 mm ID flexible tube
  • Operating Temperature : -20° to +50°C
  • Enclosure                       : ABS/Polycarbonate, IP65

Futuristic Differential Pressure Transmitter Series DPT01 can be used to measure positive, negative or differential pressure in the ranges of ±25 Pa to ±20”WC. LED Display is also available. Typical HVAC applications include monitoring of Duct static Pressure & Filter differential pressure monitoring in AHUs.

Specifications:

  • DP Sensing Technology : Piezo resistive silicon sensor
  • Service                           : Air or non-corrosive gases
  • Measurement Range     : ±25 Pa to ±20”WC (Please refer ordering code)
  • Over Pressure                : 3.6 PSI
  • Burst Pressure                : 6 PSI
  • Accuracy                        : ±1% FS
  • Stability                          : ±1% FS per Year
  • Output Resolution         : 0.025%
  • Start up Time                 : 5 mSec
  • Response time               : 1 mSec
  • Output                           : 4-20mA / 0 to 10VDC
  • Display                           : 5 Digit LED Display (Optional)
  • Supply Voltage              : 24VDC / 24VAC ±10%
  • Electrical Entry               : Cable Gland PG11
  • Process Connection       : 5 mm ID flexible tube
  • Operating Temperature : -20° to +50°C
  • Enclosure                       : ABS/Polycarbonate, IP65
DPT01 Datasheet
